Cellspine™ Spin Rack

Cellspine™ Spin Rack

6.144,00 Kč
6.144,00 Kč
Sale Sold out

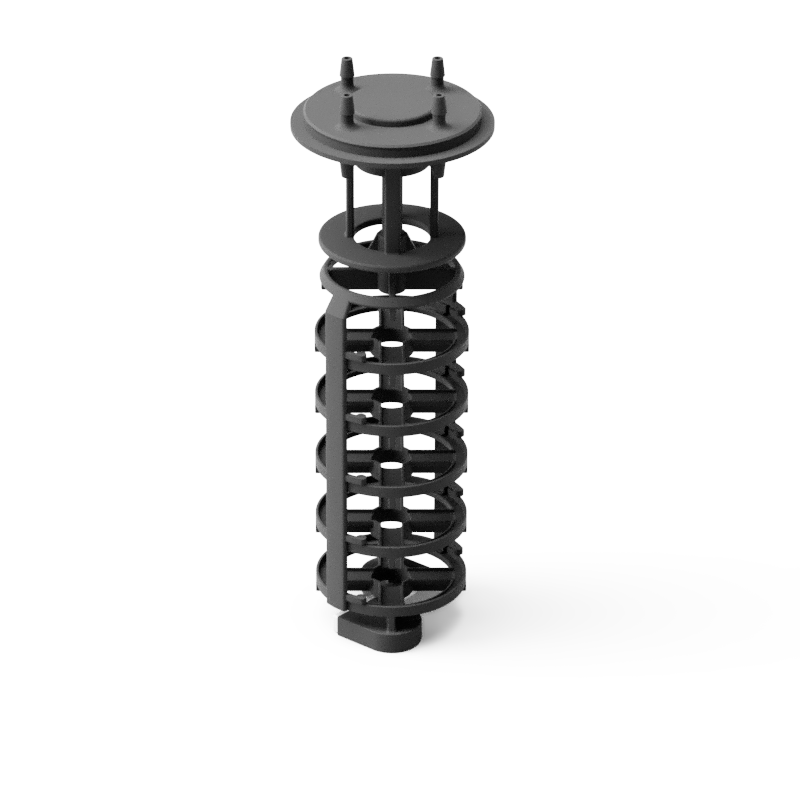

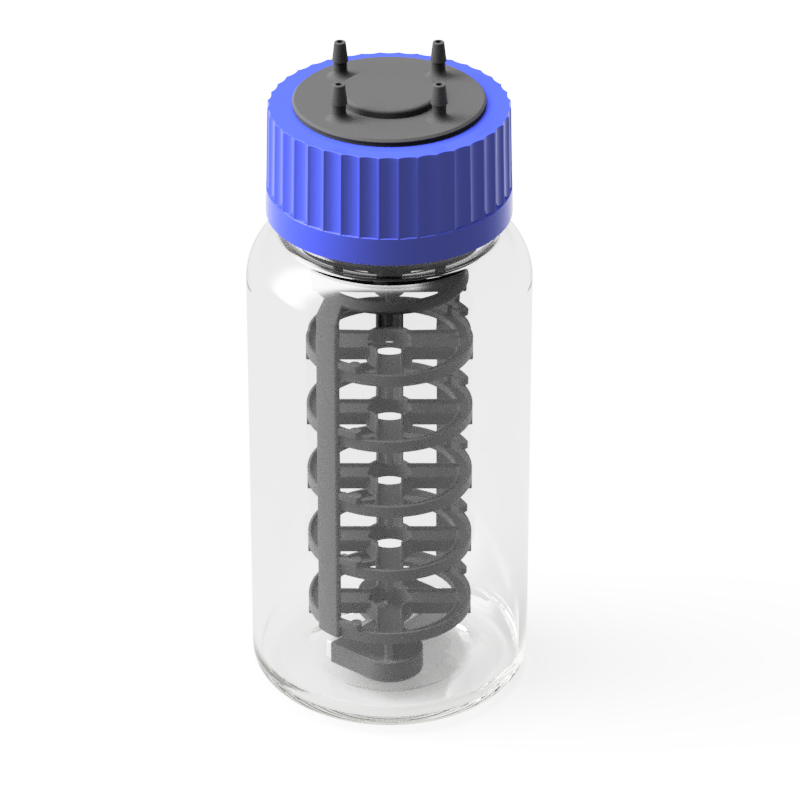

This is a rare-earth magnetically driven autoclavable structure that can be used for mounting cell scaffolds and/or other structures, such as arrays of Petri dishes.

Includes 4 integrated barbed connectors for fluid connectors.

Integrated aqueducts channel fluid so that all structural layers have fluid access.

Directly compatible with Eggsbee Base Module internal magnetic stirrer and drive mechanism is automatically accommodated by EggOS and Eggsbee Online.

Mechanically top mounted with an internal high performance rotary bearing for solid stability. Magnetically bottom driven for greatest control.

View full details

Customer Reviews

Be the first to write a review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)

Product Specifications

Eggsbee™ Base Module

Weight: 1,200 g

Base Dimensions: 110 x 110 x 330 mm

Power Adaptor: Wall plug requirements: 100-240 V, 50-60 Hz; Max. power consumption: 60 W

Operating System: EggOS 1.0

Networking: Wi-Fi (802.11b/g/n up to 150 Mbps); Bluetooth

Remote Management: Eggsbee™ Online

Platform Integration: BIOWORLDS™ compatible

Alarm Indicator: Audible alarm

Built-in Temperature Management: Solid state thermal jacket 0-60 °C (0.1 °C); Multiply redundant thermal control systems

Built-in Optical Density, Foam, and Level Sensing: Real-time optical sensors

Built-in Magnetic Stirrer Driver: 0-300 rpm, controllable acceleration profile

Built-in Illumination: White broadband LED, controllable

Accessory Docking: Eggsbee™ power & data protocol; Magnetic connector; USB-C (Eggsbee™ only) hookup

Eggsbee™ Internal Vessel

Max Volume: 1 L

Vessel Material: Glass

Cap Options: 4-port or 6-port options

Eggsbee™ Gas Monitor Add-on

Form factor: internal

Gas Analyzers: 1x CO2, 8x VOC, Temperature, Pressure, Humidity (RH)

Analysis Platforms: Eggsbee™ Online; BioWorlds™

Eggsbee™ Pump Module

Pump Module Weight: 1,100 g

Pump Module Dimensions: 110 x 110 x 80 mm

Built-in Pump Drivers: 2 x Dynacyte pumps; Method: curvilinear peristaltic; Liquid and gas compatible

Flow Rate: Liquid: 0 - 90 mL/min/pump; Gas: 0 - 150 mL/min/pump; Speed controllable; Bidirectional: injection & extraction

Daisy Chainable: Yes
