Dynacyte
4-port Cap
4-port Cap
Couldn't load pickup availability

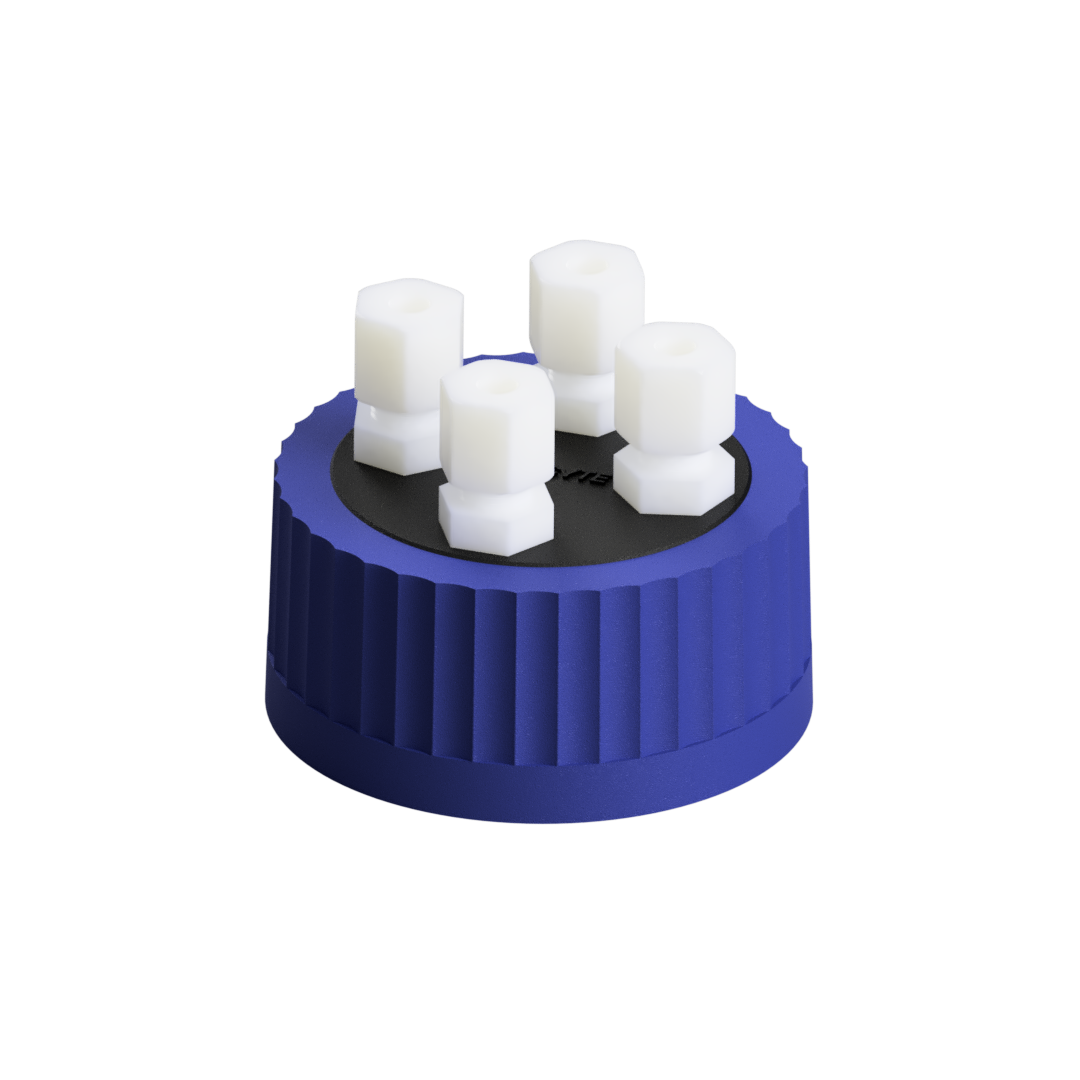

Take your bioreactor experiments to the next level with the Eggsbee™ 4-Port Cap. Engineered for precision, flexibility, and durability, this cap is designed to enhance the capabilities of your Eggsbee™ Bioreactor.
The 4-Port Cap offers a quartet of ports that provide for the controlled inflow and outflow of liquids and gases. With these four channels, you can maintain perfect environmental conditions, introduce reagents, extract samples, or evacuate waste - all without interrupting your experiment. It's the ultimate tool for dynamic, continuous, and complex bioprocessing workflows.
This cap is also crafted with a keen eye on practicality. It fits snugly into the Eggsbee™ vessel, ensuring an airtight seal that prevents contamination and maintains the integrity of your experiments. And when it comes to cleanliness, we've got you covered. The 4-Port Cap is fully sterilizable, making it ready for re-use, time and time again.
The Eggsbee™ 4-Port Cap isn't just an accessory; it's an essential upgrade that propels your research into new realms of possibility. Unlock the full potential of your Eggsbee™ Bioreactor with this versatile tool. It's time to cap off your experiment setup with style.
Share
![4-port Cap](http://www.dynacyte.com/cdn/shop/products/4portcap.png?v=1677049374&width=1445)
Product Specifications
Eggsbee™ Base Module
Weight: 1,200 g
Base Dimensions: 110 x 110 x 330 mm
Power Adaptor: Wall plug requirements: 100-240 V, 50-60 Hz; Max. power consumption: 60 W
Operating System: EggOS 1.0
Networking: Wi-Fi (802.11b/g/n up to 150 Mbps); Bluetooth
Remote Management: Eggsbee™ Online
Platform Integration: BIOWORLDS™ compatible
Alarm Indicator: Audible alarm
Built-in Temperature Management: Solid state thermal jacket 0-60 °C (0.1 °C); Multiply redundant thermal control systems
Built-in Optical Density, Foam, and Level Sensing: Real-time optical sensors
Built-in Magnetic Stirrer Driver: 0-300 rpm, controllable acceleration profile
Built-in Illumination: White broadband LED, controllable
Accessory Docking: Eggsbee™ power & data protocol; Magnetic connector; USB-C (Eggsbee™ only) hookup
Eggsbee™ Internal Vessel
Max Volume: 1 L
Vessel Material: Glass
Cap Options: 4-port or 6-port options
Eggsbee™ Gas Monitor Add-on
Form factor: internal
Gas Analyzers: 1x CO2, 8x VOC, Temperature, Pressure, Humidity (RH)
Analysis Platforms: Eggsbee™ Online; BioWorlds™
Eggsbee™ Pump Module
Pump Module Weight: 1,100 g
Pump Module Dimensions: 110 x 110 x 80 mm
Built-in Pump Drivers: 2 x Dynacyte pumps; Method: curvilinear peristaltic; Liquid and gas compatible
Flow Rate: Liquid: 0 - 90 mL/min/pump; Gas: 0 - 150 mL/min/pump; Speed controllable; Bidirectional: injection & extraction
Daisy Chainable: Yes
