Dynacyte

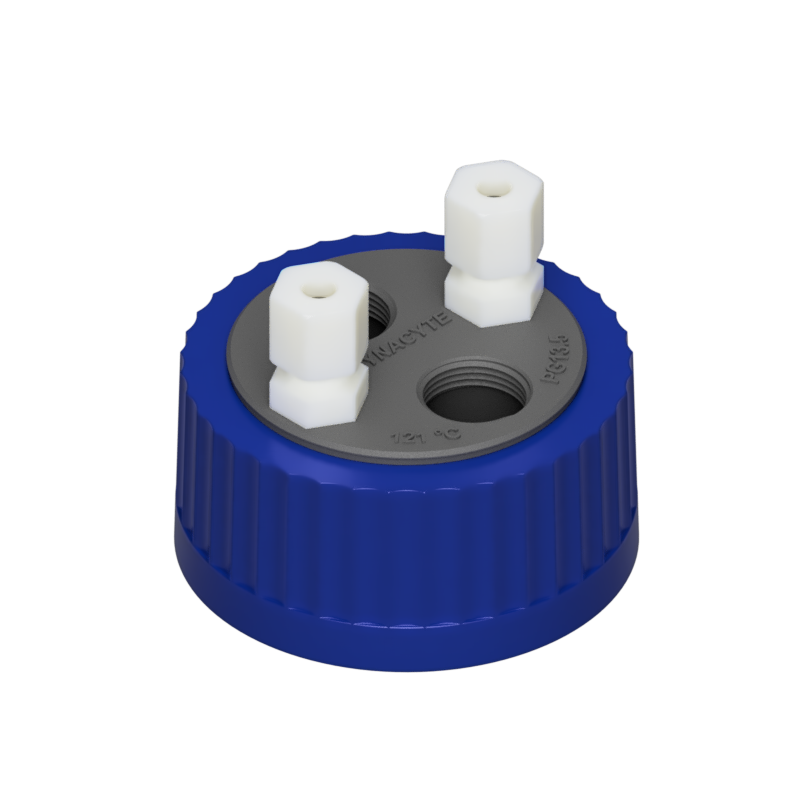

4-port Cap (2x Fluid Ports, 2x Probe Ports)

4-port Cap (2x Fluid Ports, 2x Probe Ports)

2.966,00 Kč
2.966,00 Kč
Sale Sold out

4-port Cap (2x Probe Ports / PG13.5 thread standard, 2x Fluid Ports)

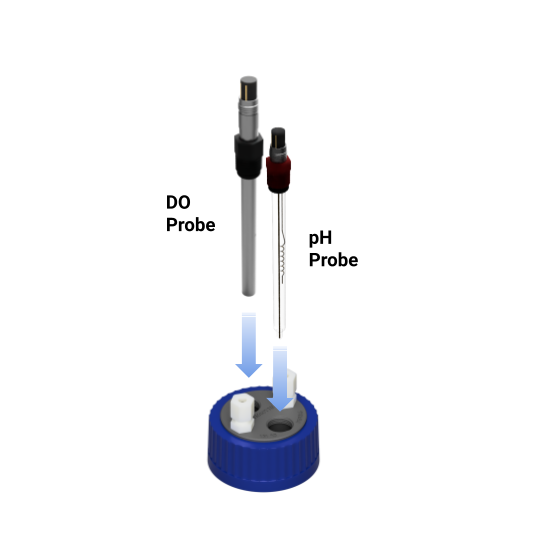

Application example: pH probe and DO probe used simultaneously

View full details

Customer Reviews

Be the first to write a review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)

Product Specifications

Eggsbee™ Base Module

Weight: 1,200 g

Base Dimensions: 110 x 110 x 330 mm

Power Adaptor: Wall plug requirements: 100-240 V, 50-60 Hz; Max. power consumption: 60 W

Operating System: EggOS 1.0

Networking: Wi-Fi (802.11b/g/n up to 150 Mbps); Bluetooth

Remote Management: Eggsbee™ Online

Platform Integration: BIOWORLDS™ compatible

Alarm Indicator: Audible alarm

Built-in Temperature Management: Solid state thermal jacket 0-60 °C (0.1 °C); Multiply redundant thermal control systems

Built-in Optical Density, Foam, and Level Sensing: Real-time optical sensors

Built-in Magnetic Stirrer Driver: 0-300 rpm, controllable acceleration profile

Built-in Illumination: White broadband LED, controllable

Accessory Docking: Eggsbee™ power & data protocol; Magnetic connector; USB-C (Eggsbee™ only) hookup

Eggsbee™ Internal Vessel

Max Volume: 1 L

Vessel Material: Glass

Cap Options: 4-port or 6-port options

Eggsbee™ Gas Monitor Add-on

Form factor: internal

Gas Analyzers: 1x CO2, 8x VOC, Temperature, Pressure, Humidity (RH)

Analysis Platforms: Eggsbee™ Online; BioWorlds™

Eggsbee™ Pump Module

Pump Module Weight: 1,100 g

Pump Module Dimensions: 110 x 110 x 80 mm

Built-in Pump Drivers: 2 x Dynacyte pumps; Method: curvilinear peristaltic; Liquid and gas compatible

Flow Rate: Liquid: 0 - 90 mL/min/pump; Gas: 0 - 150 mL/min/pump; Speed controllable; Bidirectional: injection & extraction

Daisy Chainable: Yes
