Dynacyte
Performance Silicone Tubing Pack
Performance Silicone Tubing Pack

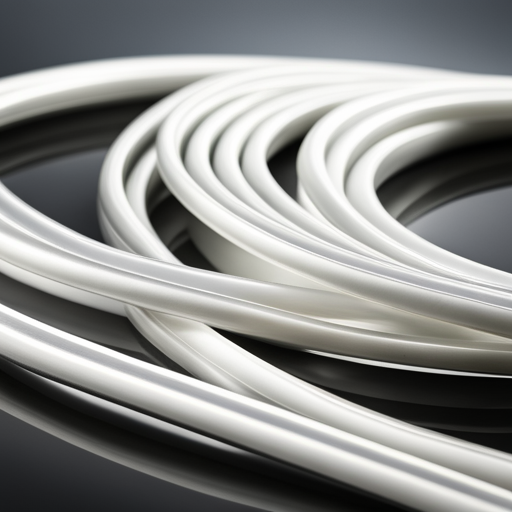

Introducing our premium tubing, made in Japan and designed to exceed your expectations in every way. With exceptional temperature resistance from -60 °C to +200 °C, this tubing is perfect for applications in extreme temperatures. Our Silicone Tubing is designed to exhibit outstanding resistance to ozone, humidity, electrical insulation, hot water, and chemicals, making it ideal for a wide range of industries.
The tube is not only durable but also highly flexible, with a compression set of only 18% at 150℃×24h, allowing it to maintain its shape and function over time. It has a high elongation capacity of 460%, providing excellent stretchability, while its body expansion coefficient of 6~8×10-4 ensures it remains stable under any condition.
The tube also boasts exceptional mechanical strength, with a tensile strength of 9.51 MPa, providing excellent resistance to wear and tear. Additionally, it has a low thermal conductivity of about 0.2 W/mk, which makes it an excellent insulator for applications that require temperature control.
The tubes is made of high-quality silicone, and its translucent color makes it easy to monitor fluid flow. With a hardness of 56 Durometer A, the tube is soft enough to bend and fold without collapsing, yet firm enough to maintain its shape.
Needless to say, use your own tubing or get this for your bioreactor.
Share
Product Specifications
Eggsbee™ Base Module
Weight: 1,200 g
Base Dimensions: 110 x 110 x 330 mm
Power Adaptor: Wall plug requirements: 100-240 V, 50-60 Hz; Max. power consumption: 60 W
Operating System: EggOS 1.0
Networking: Wi-Fi (802.11b/g/n up to 150 Mbps); Bluetooth
Remote Management: Eggsbee™ Online
Platform Integration: BIOWORLDS™ compatible
Alarm Indicator: Audible alarm
Built-in Temperature Management: Solid state thermal jacket 0-60 °C (0.1 °C); Multiply redundant thermal control systems
Built-in Optical Density, Foam, and Level Sensing: Real-time optical sensors
Built-in Magnetic Stirrer Driver: 0-300 rpm, controllable acceleration profile
Built-in Illumination: White broadband LED, controllable
Accessory Docking: Eggsbee™ power & data protocol; Magnetic connector; USB-C (Eggsbee™ only) hookup
Eggsbee™ Internal Vessel
Max Volume: 1 L
Vessel Material: Glass
Cap Options: 4-port or 6-port options
Eggsbee™ Gas Monitor Add-on
Form factor: internal
Gas Analyzers: 1x CO2, 8x VOC, Temperature, Pressure, Humidity (RH)
Analysis Platforms: Eggsbee™ Online; BioWorlds™
Eggsbee™ Pump Module
Pump Module Weight: 1,100 g
Pump Module Dimensions: 110 x 110 x 80 mm
Built-in Pump Drivers: 2 x Dynacyte pumps; Method: curvilinear peristaltic; Liquid and gas compatible
Flow Rate: Liquid: 0 - 90 mL/min/pump; Gas: 0 - 150 mL/min/pump; Speed controllable; Bidirectional: injection & extraction
Daisy Chainable: Yes
