Advanced Cap Assembly
Advanced Cap Assembly
Couldn't load pickup availability

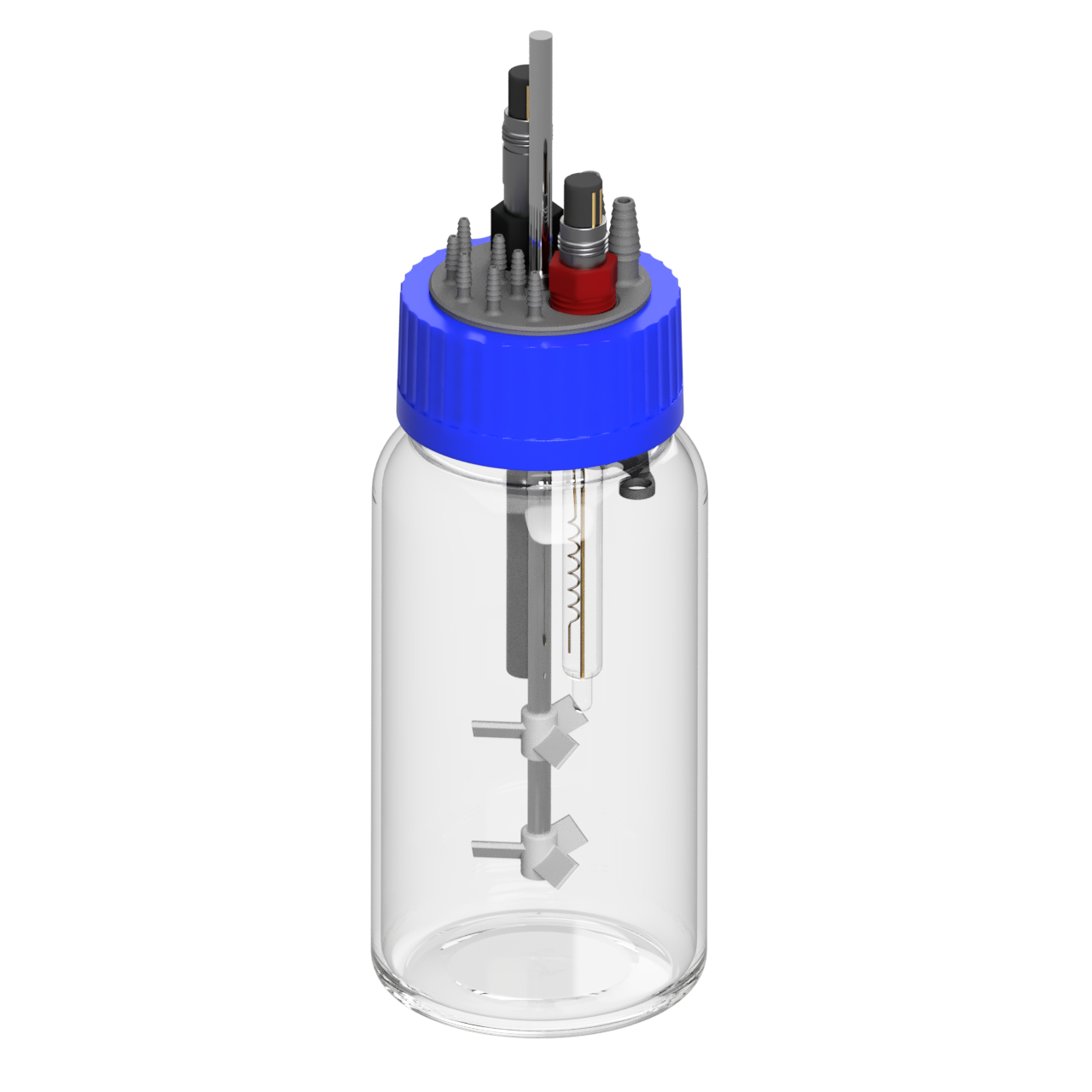

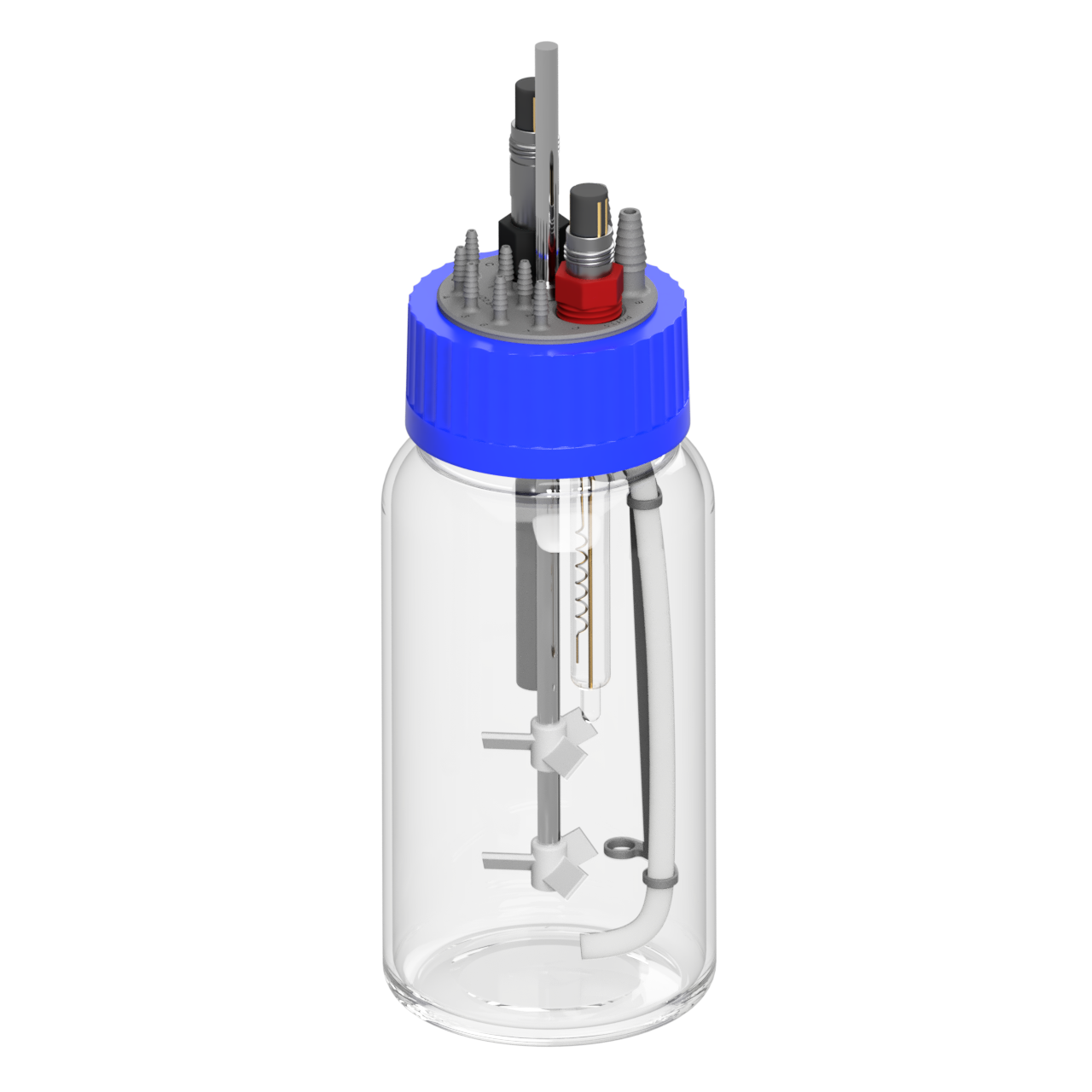

Unlock your bioreactor's maximum potential with the Eggsbee® Advanced Cap Assembly. This carefully designed cap boosts the operational capacity of your Eggsbee™ Bioreactor, empowering you to execute more intricate and advanced bioprocessing procedures. The entire assembly is autoclavable.

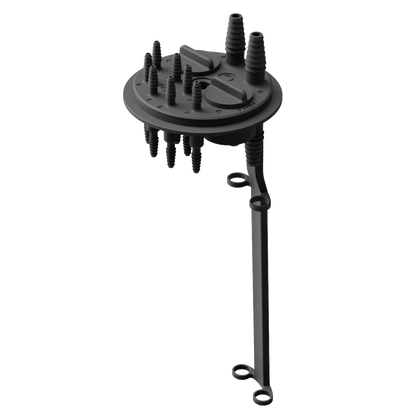

The Eggsbee® Advanced Cap Assembly equips you with twelve (12) meticulously engineered ports:
- 7x small ports for liquid or gas, double barbed connection for soft tubing
- 2x large ports for large flow rate liquids or gases, double barbed connection for soft tubing
- 2x probe ports (standard PG13.5 thread size) for probes/electrodes such as pH or DO probes. Two (2) probe port caps are also included if they are not used.
- Optional: 1x shaft port and impeller/propeller set for externally driven stirrer configurations. This port includes integrated bearings and seals so that the interface remains sterile and autoclavable. One shaft port cap is included if this port is not used.
This cap assembly has been designed to align with Eggsbee's commitment to practicality and ease of use. It nestles into the Eggsbee™ vessel to form a firm, airtight seal, protecting your experiment from any possible external contaminants. Moreover, this cap assembly is fully sterilizable, readying it for reuse, ensuring your setup remains clean and safe.
The Eggsbee™ Advanced Cap Assembly is more than an accessory; it's a sophisticated enhancement that propels your bioreactor's capabilities into new territories.
Options Specifications
|
Without Shaft |
With Shaft |
|
|
7x small ports for liquid or gas, double barbed connection for soft tubing |
✔ |
✔ |
|
2x large ports for large flow rate liquids or gases, double barbed connection for soft tubing |
✔ |
✔ |
|
2x probe ports (standard PG13.5 thread size) for probes/electrodes such as pH or DO probes. Two (2) probe port caps are also included if they are not used. |
✔ |
✔ |
|

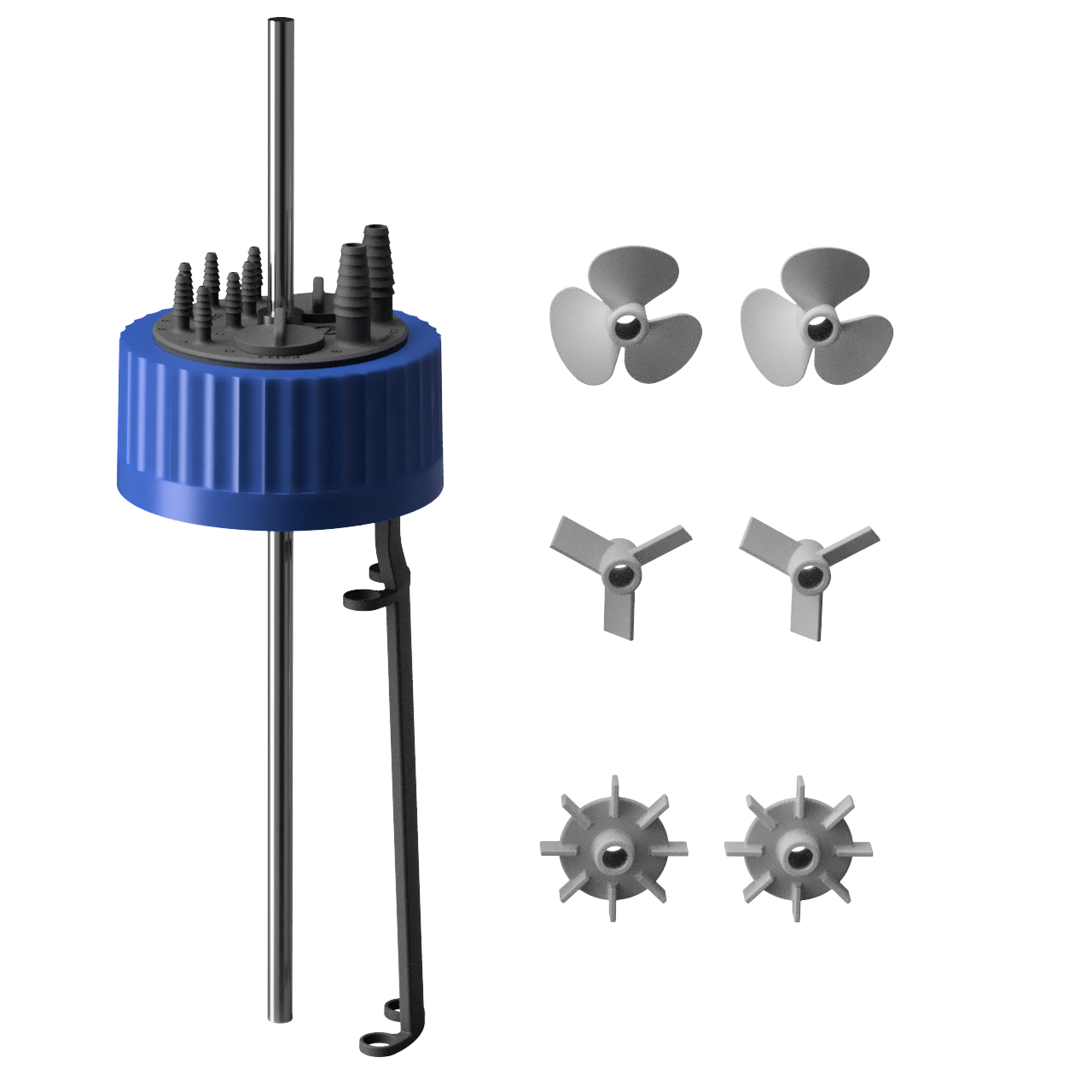

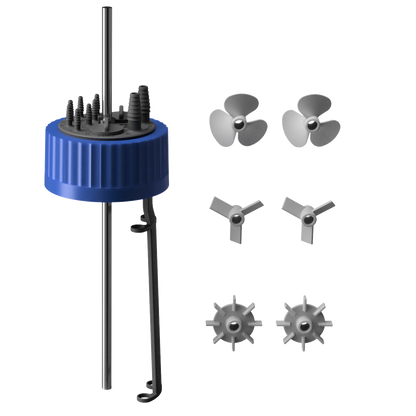

1x shaft port for externally driven stirrer configurations. This port includes integrated bearings and seals so that the interface remains sterile and autoclavable. Also includes one pair of Ruston impellers, one pair of pitched blade impellers, and one pair of marine propellers. One shaft port cap is included if this port is not used. Version without shaft is monolithically sealed and does not include shaft nor any propellers or impellers. |
✔ |
Share
Product Specifications
Eggsbee™ Base Module
Weight: 1,200 g
Base Dimensions: 110 x 110 x 330 mm
Power Adaptor: Wall plug requirements: 100-240 V, 50-60 Hz; Max. power consumption: 60 W
Operating System: EggOS 1.0
Networking: Wi-Fi (802.11b/g/n up to 150 Mbps); Bluetooth
Remote Management: Eggsbee™ Online
Platform Integration: BIOWORLDS™ compatible
Alarm Indicator: Audible alarm
Built-in Temperature Management: Solid state thermal jacket 0-60 °C (0.1 °C); Multiply redundant thermal control systems
Built-in Optical Density, Foam, and Level Sensing: Real-time optical sensors
Built-in Magnetic Stirrer Driver: 0-300 rpm, controllable acceleration profile
Built-in Illumination: White broadband LED, controllable
Accessory Docking: Eggsbee™ power & data protocol; Magnetic connector; USB-C (Eggsbee™ only) hookup
Eggsbee™ Internal Vessel
Max Volume: 1 L
Vessel Material: Glass
Cap Options: 4-port or 6-port options
Eggsbee™ Gas Monitor Add-on
Form factor: internal
Gas Analyzers: 1x CO2, 8x VOC, Temperature, Pressure, Humidity (RH)
Analysis Platforms: Eggsbee™ Online; BioWorlds™
Eggsbee™ Pump Module
Pump Module Weight: 1,100 g
Pump Module Dimensions: 110 x 110 x 80 mm
Built-in Pump Drivers: 2 x Dynacyte pumps; Method: curvilinear peristaltic; Liquid and gas compatible
Flow Rate: Liquid: 0 - 90 mL/min/pump; Gas: 0 - 150 mL/min/pump; Speed controllable; Bidirectional: injection & extraction
Daisy Chainable: Yes
